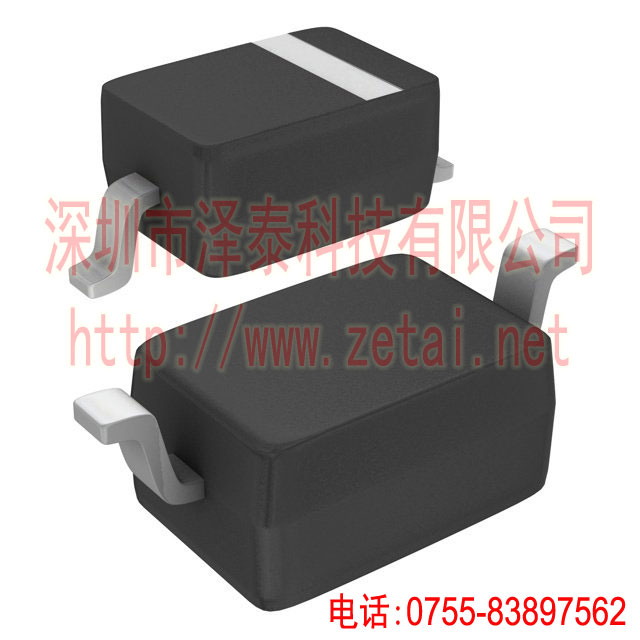

CDSOD323-T03S

CDSOD323-T03S

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Uni-Directional
Maximum Clamping Voltage:10.9 V
Number of Elements per Chip:1
ESD Protection Voltage:±30@Air Gap/±30@Contact Disc kV
Maximum Working Voltage:3.3 V
Maximum Leakage Current:125 uA
Capacitance Value:500(Typ) pF
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

ESD300B102LRHE6327XTSA1

電氣特性 Features

Type:TVS
Configuration:Single
Pin Count:2
Direction Type:Bi-Directional
Maximum Clamping Voltage:12.5 V
Number of Elements per Chip:1
ESD Protection Voltage:±30@Air Gap|±30@Contact Disc kV
Maximum Working Voltage:3.3 V
Maximum Leakage Current:0.1 uA
Capacitance Value:1.8 pF
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:125 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

ESDALC14V2-1U2

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Uni-Directional
Number of Elements per Chip:1
ESD Protection Voltage:±15@Air Gap/±8@Contact Disc kV
Maximum Leakage Current:0.1 uA
Capacitance Value:6(Typ) pF
Minimum Operating Temperature:-40 ℃
Maximum Operating Temperature:125 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

CESD5V0K5

電氣特性 Features

  • 類型: 開關二極管
  • Pd = 350mW
  • Io = 150mA
  • Vr = 75V
  • Vf = 1.25V
  • Ir = 1uA
  • Trr = 4ns
  • 內部電路圖:
    CESD5V0K5內部電路圖

更多相似二極管產品參數說明表

TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

CESDBLC5V0D5

電氣特性 Features

  • 類型: 開關二極管
  • Pd = 350mW
  • Io = 150mA
  • Vr = 75V
  • Vf = 1.25V
  • Ir = 1uA
  • Trr = 4ns
  • 內部電路圖:
    CESDBLC5V0D5內部電路圖

更多相似二極管產品參數說明表

TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

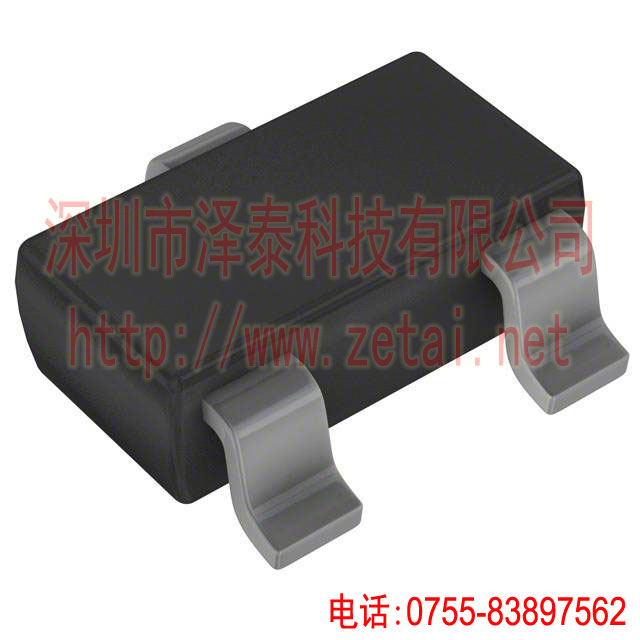

PESD5V0S2BT,215

PESD5V0S2BT,215

電氣特性 Features

Type:TVS
Pin Count:3
Direction Type:Bi-Directional
Maximum Clamping Voltage:14 V
Number of Elements per Chip:2
ESD Protection Voltage:30@Contact Disc/10@HBM kV
Maximum Working Voltage:5 V
Maximum Leakage Current:0.1 uA
Capacitance Value:45 pF
Minimum Operating Temperature:-65 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

CESDLC3V0L4

電氣特性 Features

  • 類型: 開關二極管
  • Pd = 350mW
  • Io = 150mA
  • Vr = 75V
  • Vf = 1.25V
  • Ir = 1uA
  • Trr = 4ns
  • 內部電路圖:
    CESDLC3V0L4內部電路圖

更多相似二極管產品參數說明表

TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

ESDALC6-4N4

電氣特性 Features

Type:TVS
Pin Count:4
Direction Type:Uni-Directional
Maximum Clamping Voltage:10 V
Number of Elements per Chip:4
ESD Protection Voltage:11@Contact Disc kV
Maximum Leakage Current:0.07 uA
Capacitance Value:11 pF
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:125 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

PESD36VS1UL,315

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Uni-Directional
Maximum Clamping Voltage:80 V
Number of Elements per Chip:1
ESD Protection Voltage:30@Contact Disc/10@HBM/0.4@MM kV
Maximum Working Voltage:36 V
Maximum Leakage Current:0.01 uA
Capacitance Value:30 pF
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

PESD12VS1UB,115

PESD12VS1UB,115

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Uni-Directional
Maximum Clamping Voltage:35 V
Number of Elements per Chip:1
ESD Protection Voltage:30@Contact Disc/10@HBM kV
Maximum Working Voltage:12 V
Maximum Leakage Current:0.05 uA
Capacitance Value:75 pF
Minimum Operating Temperature:-65 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

PESD2CAN,215

PESD2CAN,215

電氣特性 Features

Type:TVS
Pin Count:3
Direction Type:Bi-Directional
Maximum Clamping Voltage:70 V
Number of Elements per Chip:2
ESD Protection Voltage:23@Contact Disc/10@HBM kV
Maximum Working Voltage:24 V
Maximum Leakage Current:0.05 uA
Capacitance Value:17 pF
Minimum Operating Temperature:-65 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

PESD5V0L1BA,135

PESD5V0L1BA,135

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Bi-Directional
Maximum Clamping Voltage:33 V
Number of Elements per Chip:1
ESD Protection Voltage:30@Contact Disc/10@HBM kV
Maximum Working Voltage:5 V
Maximum Leakage Current:1 uA
Capacitance Value:75 pF
Minimum Operating Temperature:-65 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

ESD5205P6T6G

電氣特性 Features

Type:TVS
Pin Count:6
Direction Type:Uni-Directional
Maximum Clamping Voltage:10 V
Number of Elements per Chip:4
ESD Protection Voltage:±15@Air Gap/±15@Contact Disc kV
Maximum Working Voltage:5 V
Maximum Leakage Current:1 uA
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:125 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

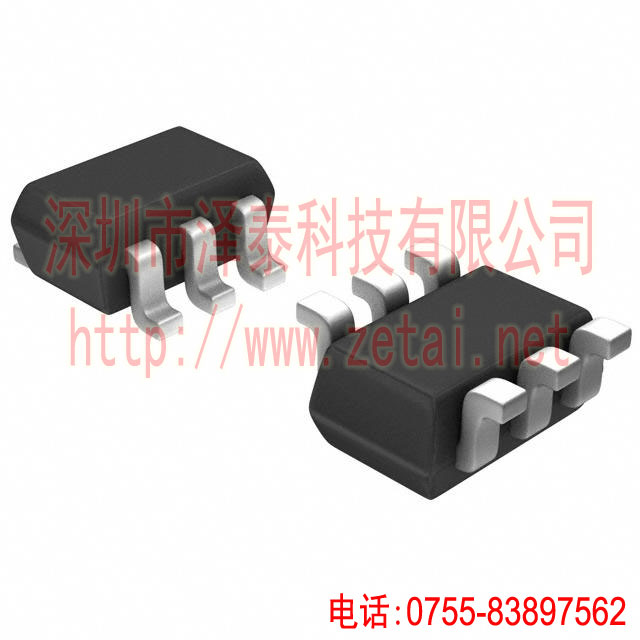

NUP2202W1T2G

NUP2202W1T2G

電氣特性 Features

Type:TVS
Pin Count:6
Direction Type:Uni-Directional
Maximum Clamping Voltage:20 V
Number of Elements per Chip:1
ESD Protection Voltage:20@Air Gap/20@Contact Disc/16@HBM/0.4@MM kV
Maximum Working Voltage:5 V
Maximum Leakage Current:5 uA
Minimum Operating Temperature:-40 ℃
Maximum Operating Temperature:125 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管

CDSOD323-T03SC

CDSOD323-T03SC

電氣特性 Features

Type:TVS
Pin Count:2
Direction Type:Bi-Directional
Maximum Clamping Voltage:10.9 V
Number of Elements per Chip:1
ESD Protection Voltage:±30@Air Gap/±30@Contact Disc kV
Maximum Working Voltage:3.3 V
Maximum Leakage Current:125 uA
Capacitance Value:200(Typ) pF
Minimum Operating Temperature:-55 ℃
Maximum Operating Temperature:150 ℃
Mounting:Surface Mount
Rad Hard:No
TVS二極管 更新于 2025-12-04 Tag標簽:TVS二極管
